Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: GN
  • Model Number: v8/v4
  • Working Pressure: 16bar of car fuel consumption calculator
  • Repeatability: 0.1% of fuel flow meter for boat
  • Accuracy: 0.5% of marine fuel consumption meter
  • Flow range: 1~80L/H and 4~200L/H
  • Certificate: ISO and CE
  • Maintenance: Less and Easy
  • Quality: World-class
  • Installation: Easy of fuel flow meter for boat
  • Medium: Oil and diesel
  • Application: Widely

Packaging & Delivery

Packaging Details carton of car fuel consumption calculator
Delivery Time 3-15 days
Product Description

               The New Design Car marine fuel consumption flow calculator meter for boat

 Working principle:

    After the oil gun is inserted into the meter using an oil gun out of the oil differential push piston flowmeter internal rotation, rotation of the piston on the one hand correctly completed measurement, on the other hand drive magnet assembly. Magnet assembly led counter display. There are two groups of synchronous counter display, in which a group of a total of 7 digits after 7 automatically reset to zero and then started after the word round, a group of four digits can be manually reset to zero at any time within the counter does not enter the oil and rain.


2.Brief introduction:

 1)It’s the best marine fuel consumption meter to manage fuel consumption. the accuracy is better than 1%.

 2)It’s our patent product and certificate is issued by State Intellectual Property Office.
 3)We are the leading manufacturer of fuel flow meter for boat in China.

 4)Monitor fuel consumption in modern way by connection with GPS.

The car fuel consumption calculator is made by technology from  Switzerland .It is most popular Fuel consumption flow meter is the world.

   The Marine fuel consumption meter has two types

     1.V4 series fuel consumption flow meter;

     2.V8 series fuel consumption flow meter.


Parameters

                                        The ShangHai CiXi Instrument Company

                                                                                        ---------Without quality complaints in 3 consecutive years

Model
M counter
Filter
Pulse
Range(L/H)
Accuracy
Temperature(bar)
Pressure(c)
V4

YES

NO
NO
1-80
1%
32
-40~80
V4-OEM

NO

NO
YES
1-80
1%
32
-40~80
V4R

YES

NO
YES
1-80
1%
32
-40~80
V8

YES

NO
NO
4-200
1%
32
-40~80
V8-OEM

NO

NO
YES
4-200
1%
32
-40~80
V8R

YES

NO
YES
4-200
1%
32
-40~80
Model
pulse
Min flow
Fre(Hz)
Pulse(s)
Max flow
Fre(Hz)
pulse(s)
V4 OEM
200P/L
1L/H
0.055000
18.00
80L/H
4.444000
0.23
V4R-reed switch
2P/L
1L/H
0.000550
1800.00
80L/H
0.044440
22.50
V4R-hall
1P/L
1L/H
0.000270
3600.00
80L/H
0.022220
45.00
V4BR-hall
1P/L
1L/H
0.000027
3600.00
80L/H
0.022220
45.00
V8 OEM
80P/L
4L/H
0.088800
11.25
200L/H
4.444000
0.23
V8R-reed switch
2P/L
4L/H
0.000550
1800.00
200L/H
0.044440
22.50
V8R-hall
1P/L
4L/H
0.000027
3600.00
200L/H
0.022220
45.00
V8BR-hall
1P/L
4L/H
0.000027
3600.00
200L/H
0.022220
45.00

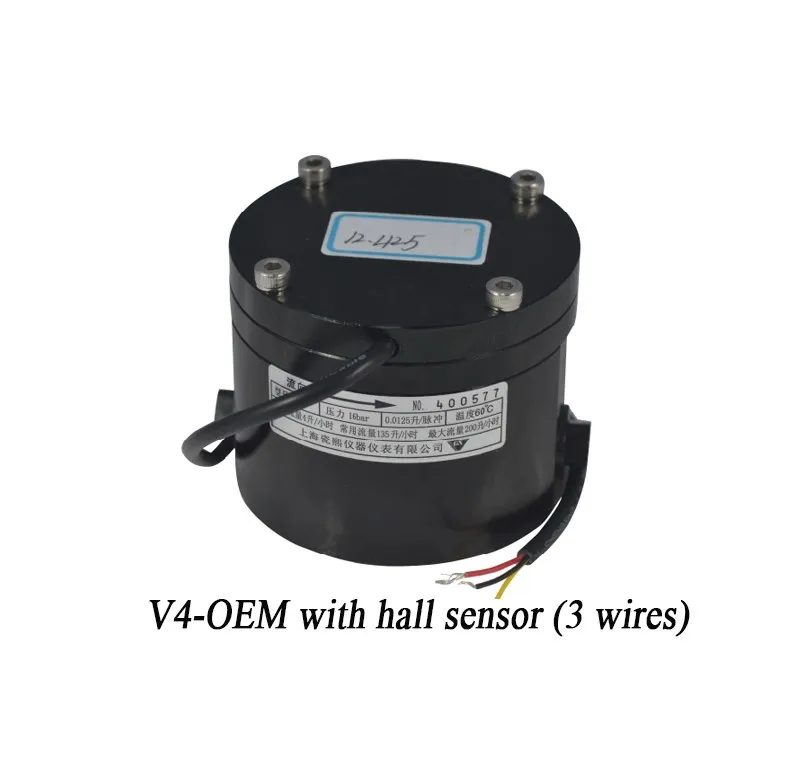

V4-OEM with hall sensor(3 wires)
Power
5-18vdc
Model
V4/8-OEM,V4/8R,V4/8BR
Black wire
GND
Red  WIRE
Power supply
Yellow wire
Singal
Name
V8-OEM with hall sensor(3wires)
Power
5-36VDC
Model
V4/8-OEM,V4/8R,V4/8BR
Black wire
GND
Red wire
Power supply
Yellow wire
Signal

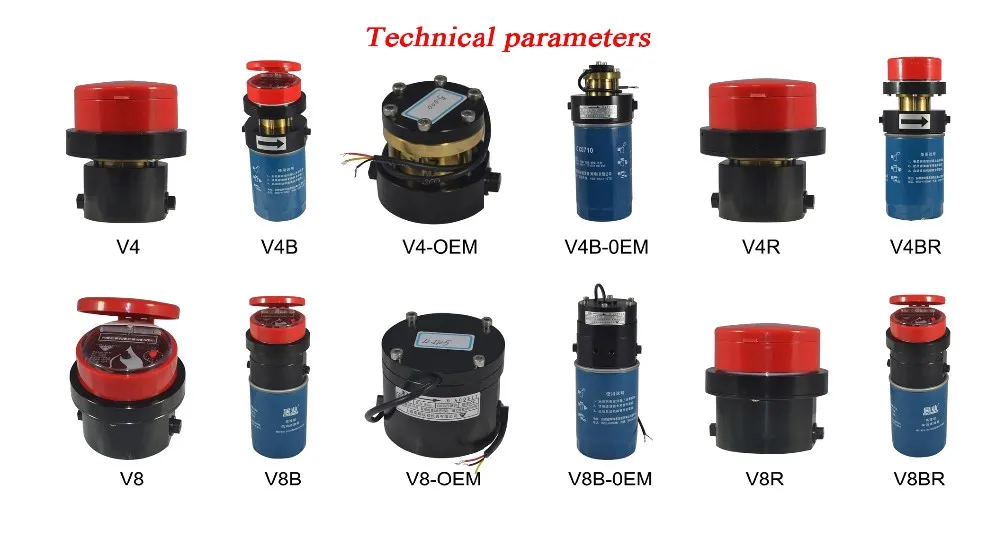

                                              Fuel consumption flow meter   Technical parameter

Detailed Images

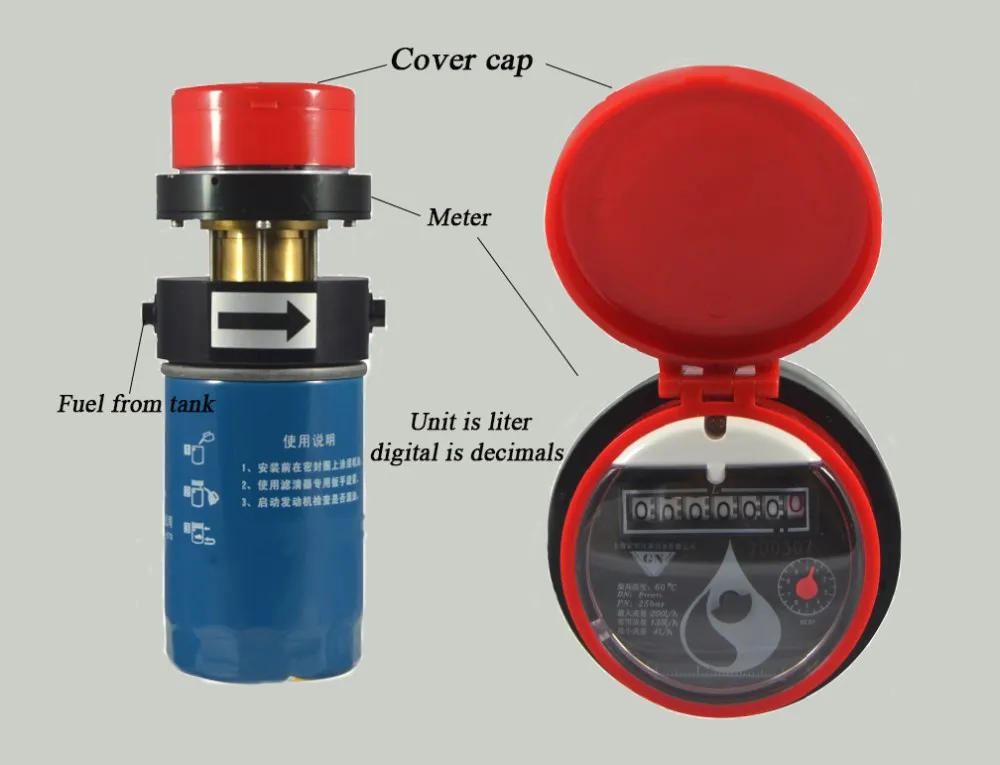

       The detail of marine fuel consumption meter


 1.Red Cover cap of flow meter for oil;

 2.Inlet and outlet nozzle;

 3.decimals digital.

             Description

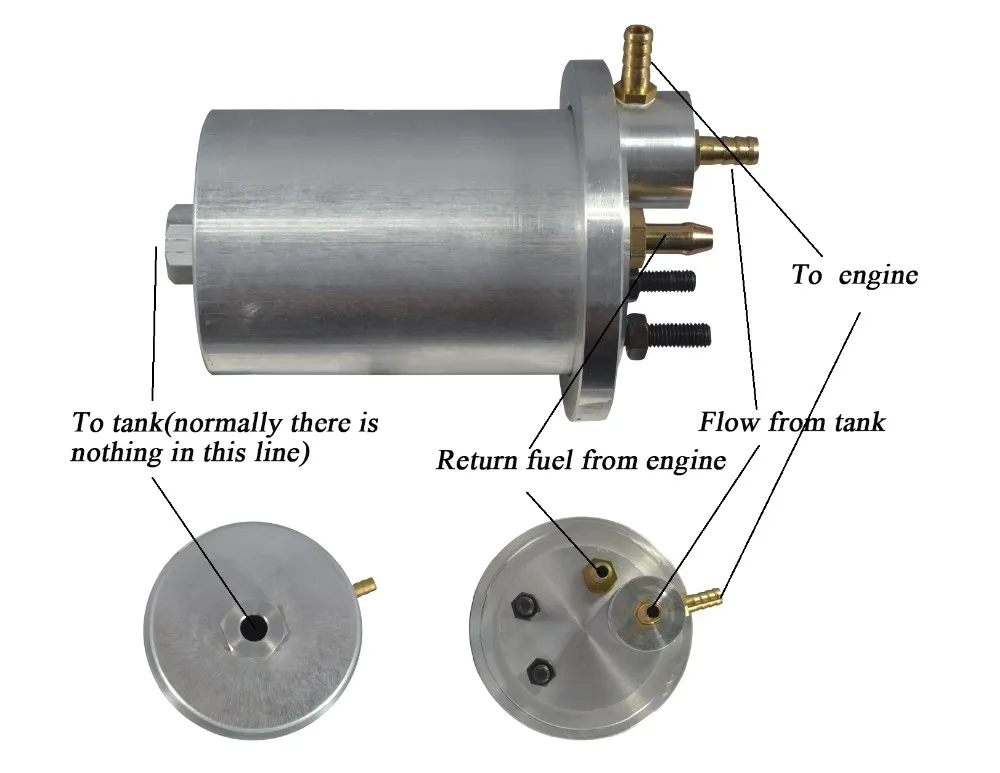

          As the photo shows The connection Method of the car fuel consumption calculator .

Anvantage

                             The ShangHai CiXi Instrument Company


1) We are Alibaba Assessed 9 years Gold Supplier.
2) We have about 30 years experience in production.
3) our products have been exported to more 100 countries and area.
4) 100% QC inspection Before Shippment.
5) ISO,CE,SGS standard and factory price.
Pls Believe our company could provide the best services for you.

                                                                    Main features

1.Quick and easy installation in vehicles of every type.
2.Supports most used models too
3.Only short down-time (OFF-operation) period
4.Proved and tested system
5.Easy and accurately to read fuel consumption of engine
6.No extra maintenance necessary and Low installation cost
7.Tamper-proof measurement
8.Short down-time of vehicle only
9.Quick pay-back period.

Our Company

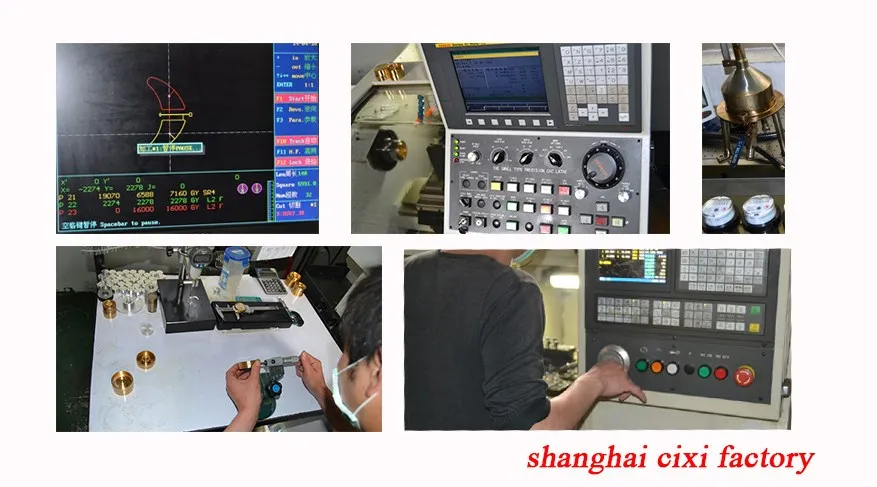

                                        The shanghai cixi instrument company 's factory

     Our company has owm factory for fuel flow meter for boat. The factory With advanced detection equipment and calibration .With 5 calibration points to hold the high accuracy.



Package
Packaging
Size
L*W*H(Based on size)(mm)
Weight
The weight:1~50KG

Packaging

Details

1.The normal package is wooden box

   (Size:L*W*H)

2.The wooden box will be fumigted if the customzer has special request.
