Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: GN
  • Model Number: CX-VFM-GB
  • Certificate: Vortex Gas Street Flowmeter with ISO and CE
  • Pressure: 1.6Mpa of Vortex Gas Street Flowmeter
  • Material: Stainless steel,Carbon steel
  • Measuring pipe size: DN15-DN1000
  • Flow range: 0.4-17000m3/H
  • Quality: World-class
  • Power supply: 24VDC,battery
  • Product Name: vortex flow meter
  • Output: 4-20ma of Vortex Gas Street Flowmeter
  • Medium: gas and steam

Packaging & Delivery

Packaging Details carton case/wooden case/plywood case of Vortex Gas Street Flowmeter
Delivery Time Shipped in 7 days after payment
Description

                 Top Ranking Product Vortex Gas Street Flowmeter

                                                                                                          ---------We are gold supplier in 9 consecutive years

    Vortex Gas Street Flowmeter is based on Carmen (Karman) vortex principle research and production, mainly for industrial piping dielectric fluid flow measurement, such as gas, liquid, steam and other media. It features a small pressure loss, large measuring range, high accuracy in the measurement of actual volume flow is hardly affected by fluid density, pressure, temperature, viscosity and other parameters. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be long-term stability.Vortex Gas Street Flowmeter piezoelectric stress sensors, high reliability, can work within the operating temperature range of -20 ℃ ~ + 250 ℃ for. Standard analog signals, digital pulse signal output, easily with computers and other digital systems supporting the use of a more advanced and ideal measuring instruments.

Classification:

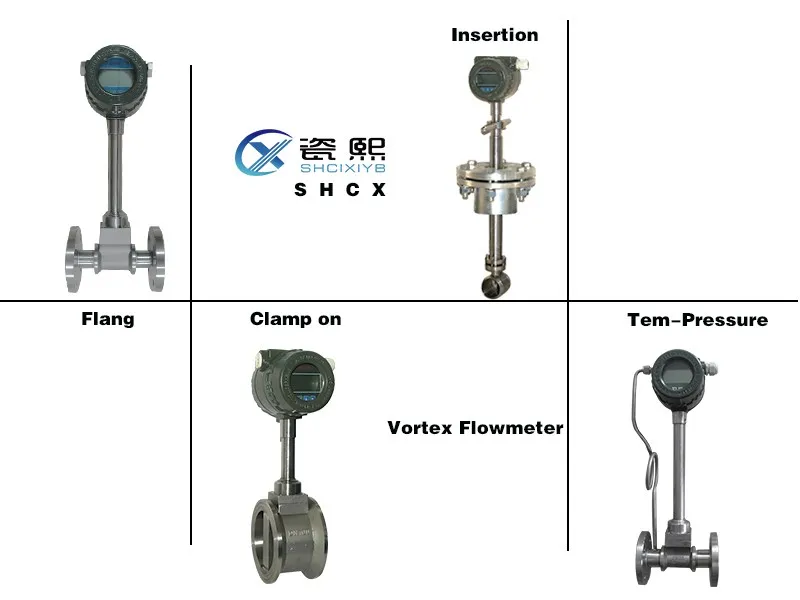

   1.Genaral Vortex Gas Street Flowmeter(flange , insertion and clamp) ;

   2.Temperature and pressure compensation Vortex Gas Street Flowmeter.

Parameters

                                    The ShangHai CiXi Instrument Company

                                                                                         ------Without quality complaints in 3 consecutive years

Nominal diameter(mm)
25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type)
Nominal pressure (MPa)
DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement)
Medium temperature(°C)
Many at -40~260 of Vortex Gas Street Flowmeter
Accuracy
±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS
Range of
1:6~1:30
Power supply voltage
Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V
Output signal
Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA
Protection grade
The ordinary IP65 diving type IP68
Item2
Vortex Gas Street Flowmeter
Ambient temperature
(-30 ~ +70) ℃ / (-20 ~ +60 ℃ liquid-crystal display)
Medium temperature
(-50 ~ +250) ℃, (-50 ~ +350) ℃
Power Supply
The  three-wire system and The two-wire system
Three-wire System
When using external power supply: 12 ~ 24VDC/30mA (-20% ~ +15%), no output can be as low as 9V
Three-wire System
When battery-powered (optional): Lithium battery 3.6V (2-13Ah) / 0.3mA.
Output Signal
Three wire system and two wire system
Three wire system
Pulse output: High level ≥ 8V (power supply voltage -1V). low level <0.5V
Three wire system
RS485 communication
Two wire system
Second-line 4 ~ 20mA linear correction electronic current output
Details

                                   The ShangHai CiXi Instruemnt Company

                                                                                                             ------More 30 years’ technology to focus details

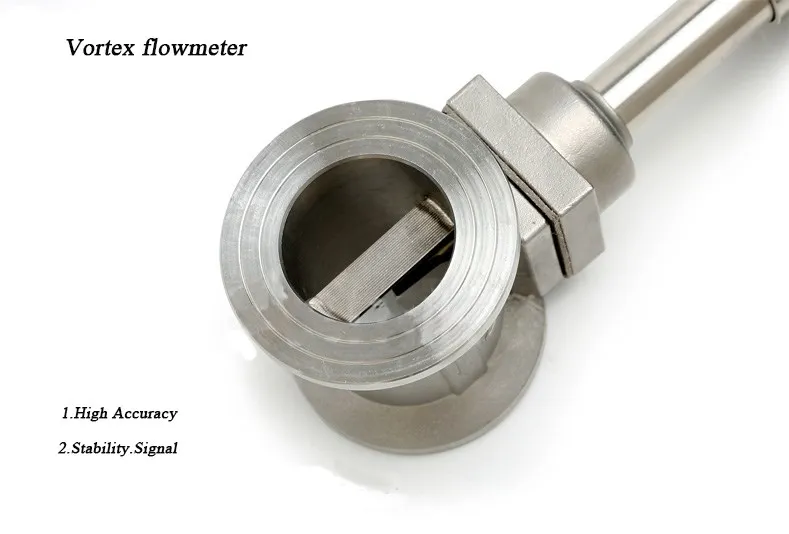

                             Vortex generator

   1.The generator of Vortex Gas Street Flowmeter is the best .

   2.The Stability signal.

   3.High Accuracy

      The display of Vortex Gas Street Flowmeter



                      1.LCD Display;

                      2.High accuracy;

                      3.SMT technology.

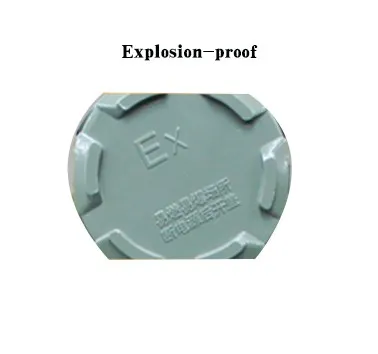

                       The Explosion Proof


     The Explosion proof of Vortex Gas Street Flowmeter

     Intrinsically safe class :Exd II ia CT2-CT5;

     Explosion-Proof :Ex d II CT2-CT5.

               In the all kinds of vortex flow meter ,what we should understand of the vortex flowmeter?

               1.Pulse output without display

  Pulse signal type Vortex Gas Street Flowmeter is by way of pulse frequency, the size of flow rate of the output pulse signal form.

  Equipment need to be equipped PLC, data acquisition and display instrument something could acceptable signal.

 Based on the equipmet with data acquisition and display instrument ,the price is very cheap of this flow meter.

        2.Vortex Gas Street Flowmeter with Display

 This Vortex Gas Street Flowmeter with display is the genaral flow meter.if the equipment not have the data acquistion and display instrument,this flow meter is the best.

   This has two power supply :24VDC and battery suppy. 24VDC power supply with 4-20mA output.this could connect with system .

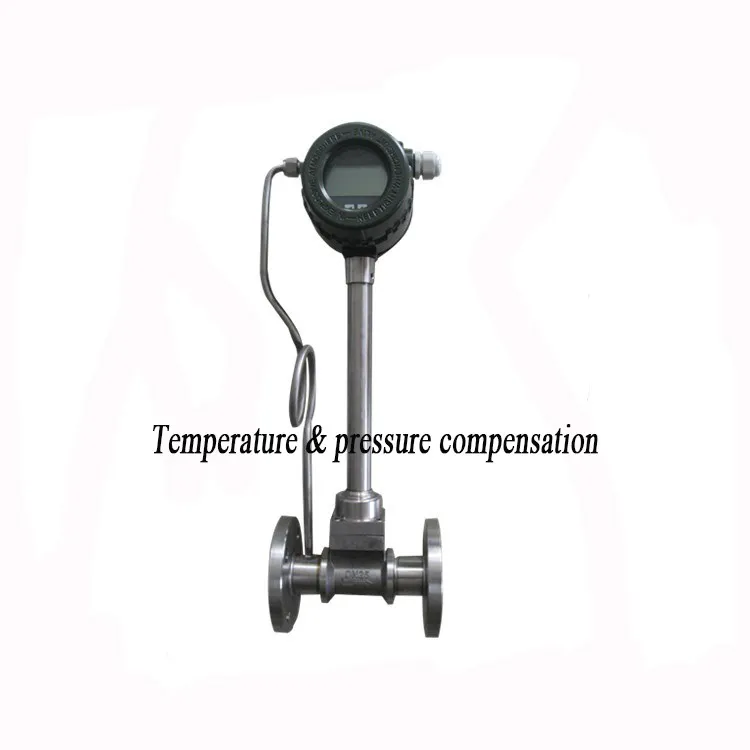

             3.   Tem&Pressure compensation

  The pea&pressure compensation Vortex Gas Street Flowmeter is the best product for steam medium.

  flowmeter could display the steam pressure and temperature.nest could calculate the density of steam,more over the accuracy is high.

Advantage

           The Vortex Gas Street Flowmeter from shanghai cixi instrument company

                                                                                                                              -------80% instruments is for exporting

1. The structure is simple and solid, no moving parts, high reliability, long-term operation is very reliable.
2. Simple installation, maintenance is very convenient of the gas flow meter.
3. The detection sensor is not in direct contact with the measured medium, stable performance and long life.
4. the output is proportional to the flow pulse signal, no zero drift, high accuracy of the gas flowmeter.
5. wide measuring range, turndown ratio up to 1:10.
6. the pressure loss is small, low cost, more energy-saving significancein a certain range.
In a certain range Reynolds number , the output signal frequency is not affected by the fluid physical properties and composition changes, meter factor only about body shape and size of the vortex, without compensation when measuring the volume of fluid flow, after replacement parts are generally no need to re instrument calibration factor.
7.Wide range of applications, steam, gas and liquid flow can be measured.

Apply&Installation

                                             The application of the gas flowmeter

 Vortex Gas Street Flowmeter measurement technology and instrumentation applications generally have the following areas:

  1.Industrial Production:

        Widely used in metallurgy, electric power, coal, chemical, petroleum, transportation, construction, textile, food, medicine, agriculture, environmental protection and people's daily life, and other fields of national economy, the development of industrial and agricultural production, energy conservation, improve product quality an important tool to improve economic efficiency and management level plays an important role in the national economy.

  2.Energy Measurement:

        Energy into primary energy (coal, crude oil, coal bed methane, LPG and natural gas), secondary energy (electricity, coke, artificial gas, refined oil, liquefied petroleum gas, steam) and energy carriers working fluid (air, oxygen, nitrogen, hydrogen, water);

  3.Environmental Protection:

        Flue gas emissions, waste, sewage and other heavily polluted air and water, a serious threat to the human environment. National sustainable development as a national policy, environmental protection will be the biggest problem of the 21st century. Pollution of air and water to be brought under control, we must strengthen management, and infrastructure management is a quantitative amount of pollution control.

  4.Transportation:

       There are five ways: Railway road, air, water, and pipeline transport. Wherein the pipeline transport, although it has long been, but the application is not common. With the outstanding environmental issues, pipeline transport characteristics attracted people's attention. Pipelines must be equipped with the meter, it is the control, allocation and scheduling eyes, is also not safe and economic accounting supervisor essential tool.

                              DIstance installation

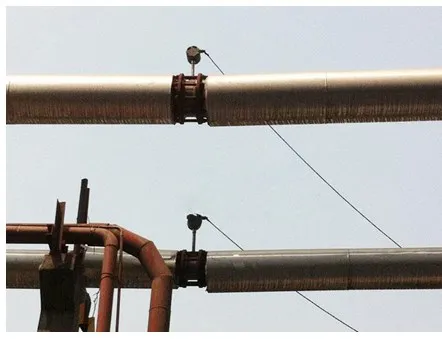

   Vortex Gas Street Flowmeter install ation with long distance,you need the signal output .For example :4-20mA .

   The bady metarial is stainless steel ,so it has a long working life.

                     Special installation



      In  the Food  and sanitation indsutry ,The Vortex Gas Street Flowmeter has special installation .

      The gas flow meter must easy yo clean.

      the way of installation is special .

When your working condition like this .you must note in the inquiry email.

Package
Packaging
Size
L*W*H(Based on the size of gas flowmeter)
Weight
Min:6KG;     Max:55KG

Packaging

Details

1.The normal package is wooden box(size:L*W*H).If export to european countries.

2.The wooden box will be fumigated and according to the customers special request.
