Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: GN
  • Model Number: CX-PULM
  • Product Name: portable ultrasonic flow meter
  • Medium: water,oil and other liquid
  • Accuracy: 1.0% of ultrasonic flow meter price
  • Temperature: 0~160C of ultrasonic flow meter china
  • Power supply: 85-264VAC of ultrasonic water flow meter
  • Output: 4-20mA of cheap ultrasonic flow meter
  • Repeatability: 0.2% of clamp on ultrasonic flow meter
  • Communication: RS485
  • Function: printer function
  • Protection grade: IP 65

Packaging & Delivery

Packaging Details: carbon of ultrasonic water flow meter
Delivery Detail: 5~7working days
Description

   Cheap Clamp On Portable Ultrasonic Water Flow Meter Price China

                                                                                                         ---------We are gold supplier in 9 consecutive years

   The TDS-100 Portable Ultrasonic Flow meter is widely to measure liquid flow in various indus such as high accuracy ,good repeatability tries thanks to its advantages long-running cell ,easy operation ,built-in printer etc.The clamp on ultrasonic flow meter is very popular in industry like chemical ,water ,power,energy monitoring etc.

   The ultrasonic water flow meter with printer function .it is very popular.

Parameters

    Cheap Clamp On Portable ultrasonic Water Flow Meter Price China

                                                                                              --------Without quality complaints in 3 consecutive years

Sensor
            S1
            M1
         L1
         S1H
         M1H
Pipe Size
DN15~DN100
DN50~DN700
DN300~DN6000
DN15~DN100
DN50~DN700
Material
                        ABS
                       Special material for H-temp
Frequency
                                          1 MHz of ultrasonic flow meter price
Installation
    V(N.W)
           V.Z
              Z
       V(N.W)
           V.Z
Calibration
                                                Calibration together with ultrasonic flow meter china
Magnetic
                                                 Yes
                             No
Temperature
                                             0~70C
                        0~160C
IP
                                                 IP 65 of cheap ultrasonic flow meter
N.W(g/1pcs)
          75
           250
        650
           94
         150
Medium
                                                  Water.Sea water.Sewage.Alcohol.oil etc.
Tubidity
                                                           <10000ppm with little air bubble
Pipe
                                                          Rubber ,Slurry,PP,PS,bakelite,PTFE
Pipe Liner
                                              Standard :5m*2 , operation:10m*2  or 15m*2
Accuracy:1% of portable ultrasonic water flow meter
Repeatability:0.2%
Easy to install outside the pipe
2 line display:Instantaneous flow rate,Accumulate flow ,status.
Built-in printer ,to print in time and regularly
Standard interface RS485 for data output and online operation
Self-diagnose to show the  current status
Built-in Nichel-hydrogen cell supports 20H of operation
Detailes

   Cheap Clamp On Portable Ultrasonic Water Flow Meter Price China

                                                                                          ----------More 30 years’ technology to focus details

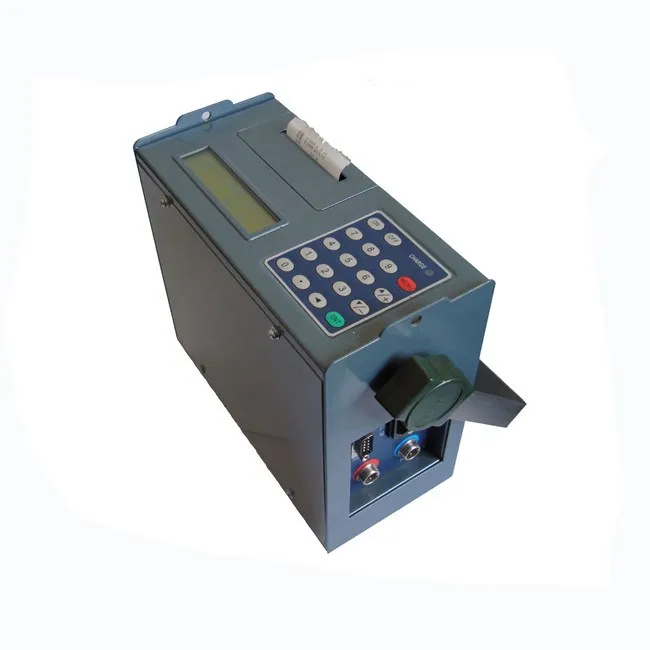

                         Double LCD Display


     The portable ultrasonic flow meter with duble LCD display.the flow rate ,Accumulate flow ,status.

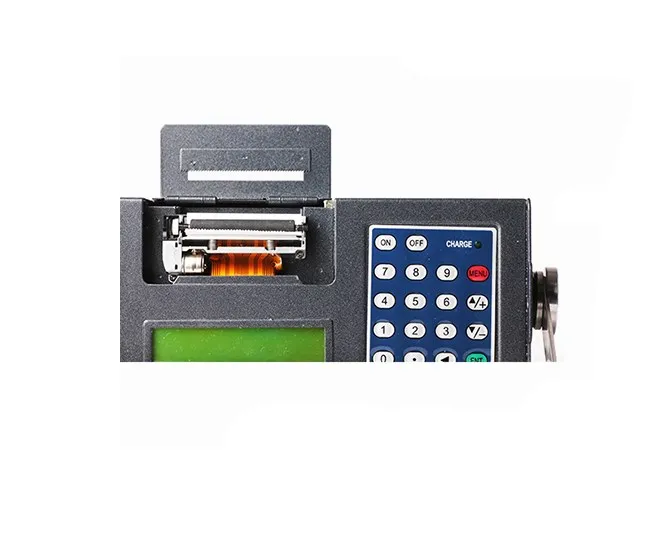

                        The Printer Function


    The cheap portable ultrasonic flow meter with Printer function.To achieve real-time screen printing, can print measurement results of timing advance setting up more than 20.

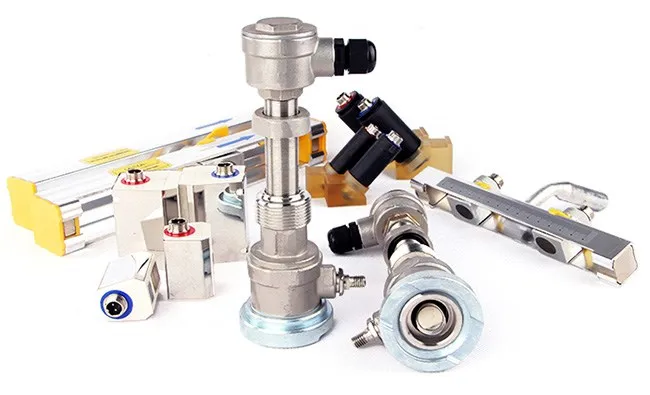

                            The Sensor


        The portable ultrasonic flow meter with many sensors. such as:S1,M1,L1,S1H,M1H

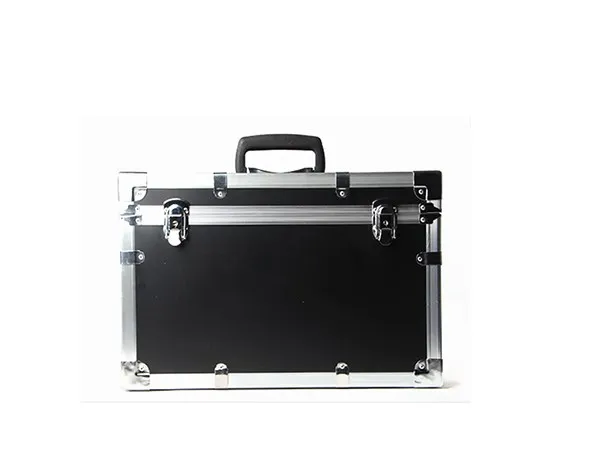

                                     The Box


    The clamp on Portable Ultrasonic Flow meter with the AL Box .It is very portable and could protect the flow meter.

Advantages

   Cheap Clamp On Portable Ultrasonic Water Flow Meter Price China

                                                                                                                                    -----------80% instruments is for exporting

1) As Alibaba Assessed 9 years Gold Supplier;
2) We have about 30 years experience in production;
3) clamp on ultrasonic flow meter have been exported to more 100 countries and area;
4) 100% QC inspection Before Shippment;
5) ISO,CE,SGS standard and factory price;
Pls Believe our company could provide the best services for you.

    Cheap Clamp On Portable Ultrasonic Water Flow Meter price China

1.Accuracy:±1% of Portable Ultrasonic Flow meter;
2.Repeatability:±0.2%;
3.Easy to install outside the pipe;
4.Two line display: Instantaneous flow rate,Accumulate flow,status;
5.Built-in printer,to print in time and regularly;
6.Standard interface RS485 for data output and on-line operation;
7.Self-diagnose to show the current status;
8.Built-in Nickel-hydrogen cell supports 20 hours of operation;
9.Portable Ultrasonic Flowmeter also can measure heat by heat module .

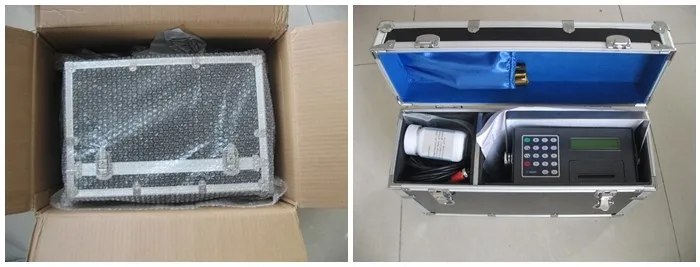

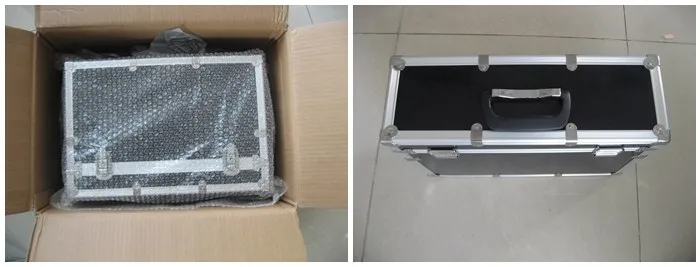

Package

                                    Shanghai CiXi Instrument Company

                                   ----CX  Instruments Strength, Guaranteed delivery 100pcs only in 7~10 days.

        The package of Portable clamp on Ultrasonic Flow meter is carbon and with a box.the delivery by the DHL TNT and other logistics company.
