Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: GN
  • Model Number: CX-EFM
  • Range: 0.05m/s-12m/s of electromagnetic flow meter
  • Material: Carbon Steel and stainless steel
  • Medium: liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2
  • Connection: DN6-DN2000 flange connection
  • Accuracy: range between 0.1m/s-10m/s can be 0.5%
  • DN: 6mm-2000 mm of electromagnetic water meter
  • Max temp: 180C of sea water flow meter
  • Output signal: 4-20mA or frequency
  • Power supply: 220V of salt water flow meter
  • Structure: inserted style, compact type or separate type

Packaging & Delivery

Packaging Details: plywood case/wooden case/carton case of electromagnetic flow meter china
Delivery Detail: 7-10 working days after receiving your payment
Product Description

100% Unbelievable Electromagnetic Sea Salt Water Flow Meter China

                                                                                                 --------We are gold supplier in 9 consecutive years

     Electromagnetic flow meter is based on Faraday's law of electromagnetic induction flowmeter. Advantages electromagnetic flow meter china pressure loss is extremely small, large measurable flow range. Maximum flow and minimum flow ratio is typically 20: 1 or more, applicable to a wide range of industrial pipe diameter, up to 3m, and the measured flow rate output signal is linear, higher accuracy, measure the conductivity ≥5μs / cm of acid, alkali, salt solution, water, sewage, corrosive liquids and slurries, pulp, paper pulp and other fluid flow. But it can not be gas, steam and pure water flow measurement.

    Electromagnetic water meter is mainly composed of magnetic system, an integral part of the measurement catheter, electrode shell, lining and converters.

    sea water flow meter water on the show is divided into: removed electromagnetic flow meter, general electromagnetic flow meter and insertion type electromagnetic flow meter .

   The Salt water flow meter with any kinds of Lining,such as PTFE,Rubber.

   The material with Carbon Steel and Stainless Steel.Which one do you need?

The electromagnetic water meter with Removed Type and Insertion Type.

The Removed Type the max transmission distance is 200m.the Protection class is IP68;

The Insertion Type Size(price electromagnetic flowmeter water) is DN200~DN3000,The accuracy is 2.5%

Parameters

  100% Unbelievable Electromagnetic Sea Salt Water Flow Meter China

                                                                                   ---------Without quality complaints in 3 consecutive years

Range
0.05m/s~12m/s of sea water flow meter
Accuracy
range between 0.1m/s~10m/s can be 0.5%
DN
6mm~2000 mm
Output signal
4~20mA or frequency
Communication
RS485,support MODBUS protocol (not standard), support HART(option)
Connection
DN6~DN2000 flange connection
Connection standard
suits for all kinds of flange standard(eg:BS EN1092-1)
Standard
accuracy apply to EN1434-1:2003 standard
Protection grade
compact type for IP65,separately type for IP67or IP68(optional)
Power
AC86~230V or DC24V(optional)
Ambient temperature
5~55C of salt water flow meter
Ambient humidity
<85 % r.h (non condensation)
Detailes

100% Unbelievable Electromagnetic Sea Salt Water Flow Meter China

                                                                                                           ---------More 30 years’ technology to focus details

               How Do We To Choose The Electromagnetic water Flow Meter

                                                                                                                --------------------------shanghai cixi instrument company

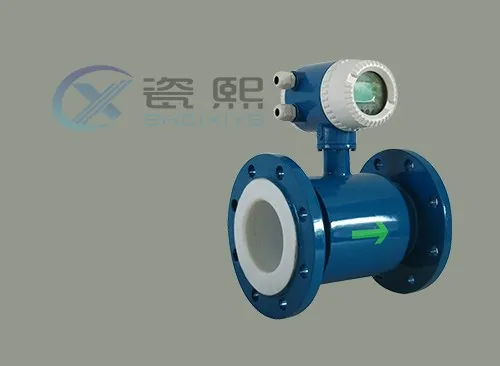

                             1.Standard Type -PTFE



     The Electromagnetic water flow meter water is Standard Type.

   If your working condition with Causticity ,you need the PTFE lining to protect the elecromagnetic water flow meter.

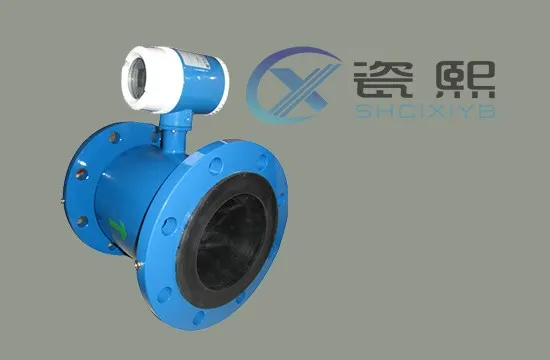

                         2.Standard Type-Rubber



        The flow meter is Stabdard Type Rubber.

        If you working condition with Wear and tear or just general condition you could choose this flow meter with rubber lining.

                    3. The Stainless steel Material



    The Electromagnetic flow meter water is Stainless Steel Material.

    If your Installation Environment is special .you should choose the Stainless Steel material flow meter.it could have long working life.Moreover the price is high than others.

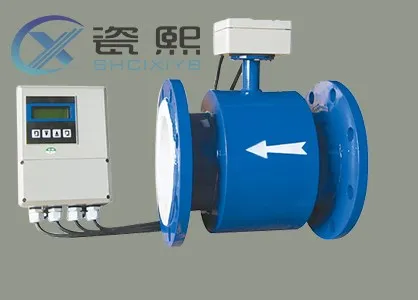

                          4. Removed  Type



     The sea water flow meter is removed type.

     If your working condition don not need local display or  Remotely display.you need to choose this flow meter.

     Apply for Measuring temperature, humidity, inconvenient observation environment.

                         5.Insertion Type



     The salt water flow meter is Insertion type.

     If your pipe size is so huge,you should to choose this insertion type flow meter .

     May be you note the insertion depth(include threads?)

     Moreove the accuracy of this is only about 2.5%

Advantage

 100% Unbelievable Electromagnetic Sea Salt Water Flow Meter China

                                                                                                                       ---------80% instruments is for exporting


                                                                             Better than other company

1) We are Alibaba Assessed 9 years Gold Supplier.
2) We have about 30 years experience in production.
3) flow meters exported to more 100 countries and area.
4) 100% QC inspection Before Shippment.
5) ISO,CE,SGS standard and factory price.
Pls Believe our company could provide the best services for you

 100% Unbelievable Electromagnetic Sea Salt Water Flow Meter China

1.No move assembly, no abrasion ;
2.Measuring range rate: 1:100;
3.No flow enhance equipment;
4.Suits for various of electronic conductivity liquid;
5.No affect from temperature, viscosity, pressure and density;
6.Anti-corrosion of price electromagnetic flowmeter water ;
7.Measure both to and reverse electromagnetic wate flow meter;
8.Huge display, easy operate;
9.Long-term EEPROM to save data when lose power;
10.Support MODBUS/HART communication protocol;
11.Wide working volts range;
12.Self diagnose.

Our Company

                                                                                 Factory

    About the electromagnetic water flow meter water our company have oueself factory.and we have Professional Engineers.

    If you want to find the factory you could visit the shanghai cixi instrument copany.

    The shanghai cixi instrument company join the 2013 shenzhen Trade fair.

    And we organized many activities usually.

Package
Package of 100% Unbelievable electromagnetic flow meter
Size
L*W*H(based on the size)
Weight
based on the material and size

Package

Details

1.The wooden box will be fumigted if the customzer has special request.
(Size:L*W*H)

2.The normal package is wooden box
