Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: GN
  • Model Number: CX-XD
  • Medium: gas and air
  • Accuracy: 1% accuracy of gas mass flow controller
  • Max pressure: 10Mpa of gas flow meter
  • Output: 4- 20 MA,pulse,RS485,RS232
  • Model: XD300 and XD600
  • Linearity: 0.5%FS of gas mass flow controller
  • Connection: CE and SGS of gas flow meter
  • Power supply: 7-16VDC
  • Display: LCD Digital of gas flow meter
  • Communication: RS485 and RS232

Packaging & Delivery

Packaging Details carbon of gas flow meter
Delivery Time 5~7 Days
Description

                                                                                                            ----------We are gold supplier in 9 consecutive years

   Gas mass flow controller, gas flow meter, thermal distributed mass flowmeter, regulator and multi variable differential pressure mass flow meter, the research and development, production and service of the products are integrated.

    Gas Mass flow controller with high precision, fast response, good repeatability, stable and reliable, wide range of working pressure, etc.. The operation is convenient to use, and can be installed at any position, and is matched with the DSN200 flow display instrument or other flow controller display device. Can also be directly connected to the computer to achieve RS232 connection, very convenient to achieve automatic control. It can also be used as a gas mass flow meter, with the flow of the first gas flow and the cumulative flow of the DSN200 flow display to carry out accurate measurement and control.

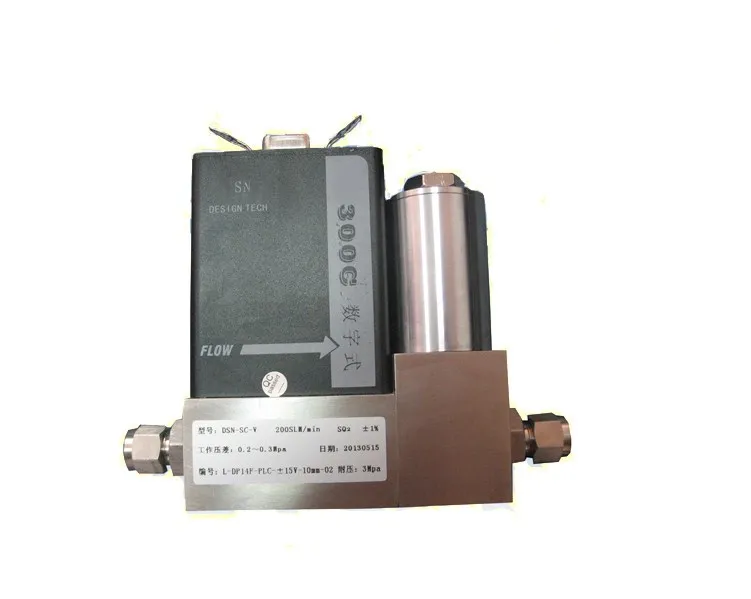

   The CiXi gas mass flow controller(gas flow meter) with XD600 and XD300 model.The XD600 with display But the XD300 without it.

Parameters

                                                 The ShangHai CiXi Instrument Company

                                                                                                    ---------Without quality complaints in 3 consecutive years

           Item
                       The gas mass flow controller(gas flow meter)
Flow range
(0-5,10,20,30,50,100,200,300,500)SCCM;(0-1,2,3,5,10,20,30,50,100)SLM
Accuracy
1%FS of gas mass flow controller
Linearity
0.5%FS
Repeatability
0.2%FS of gas flow meter
Responding time
Less than 1s
Pressure difference
(0.0500.3)Mpa
Max.Pressure
10MPa
Working temperature
5-65℃ of gas mass flow controller
Input/output
Digital:RS232/RS485
Power Supply
Analog: 0-5vdc or 4-20mA
Weight
7-16vdc,1A of gas flow meter
Detailes

                                                The ShangHai CiXi Instrument Company

                                                                                                      ----------More 30 years’ technology to focus details

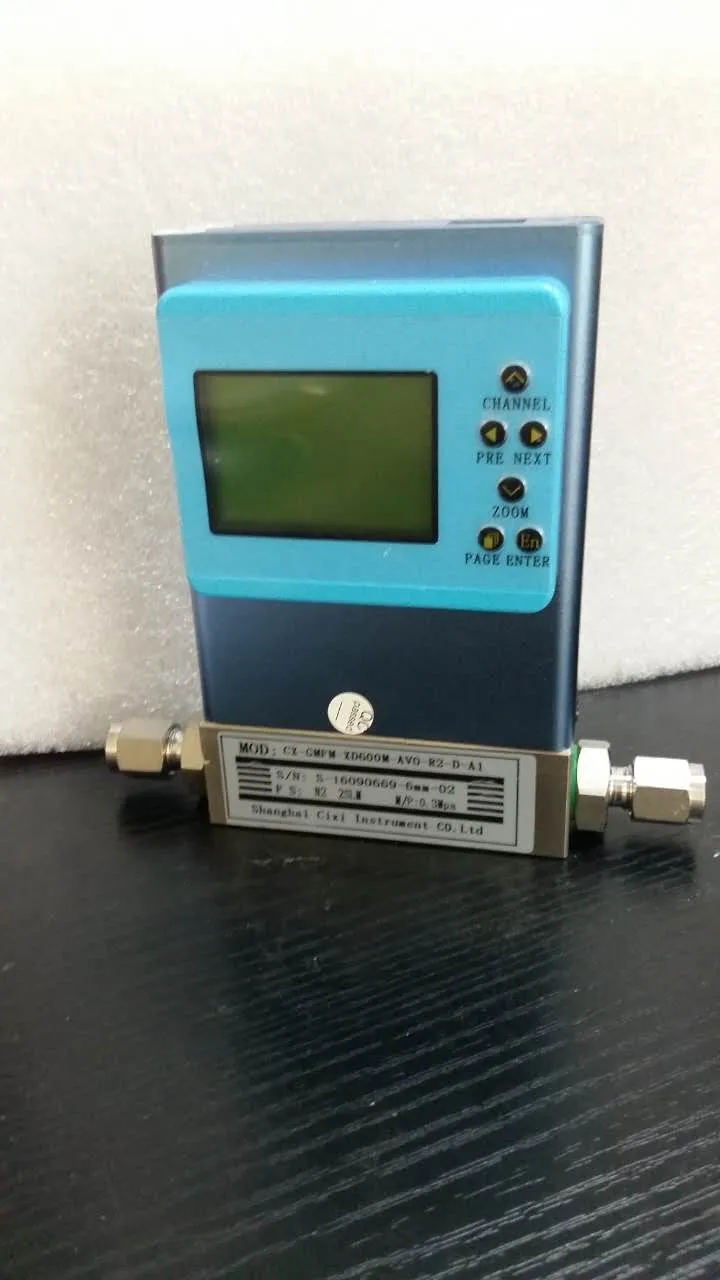

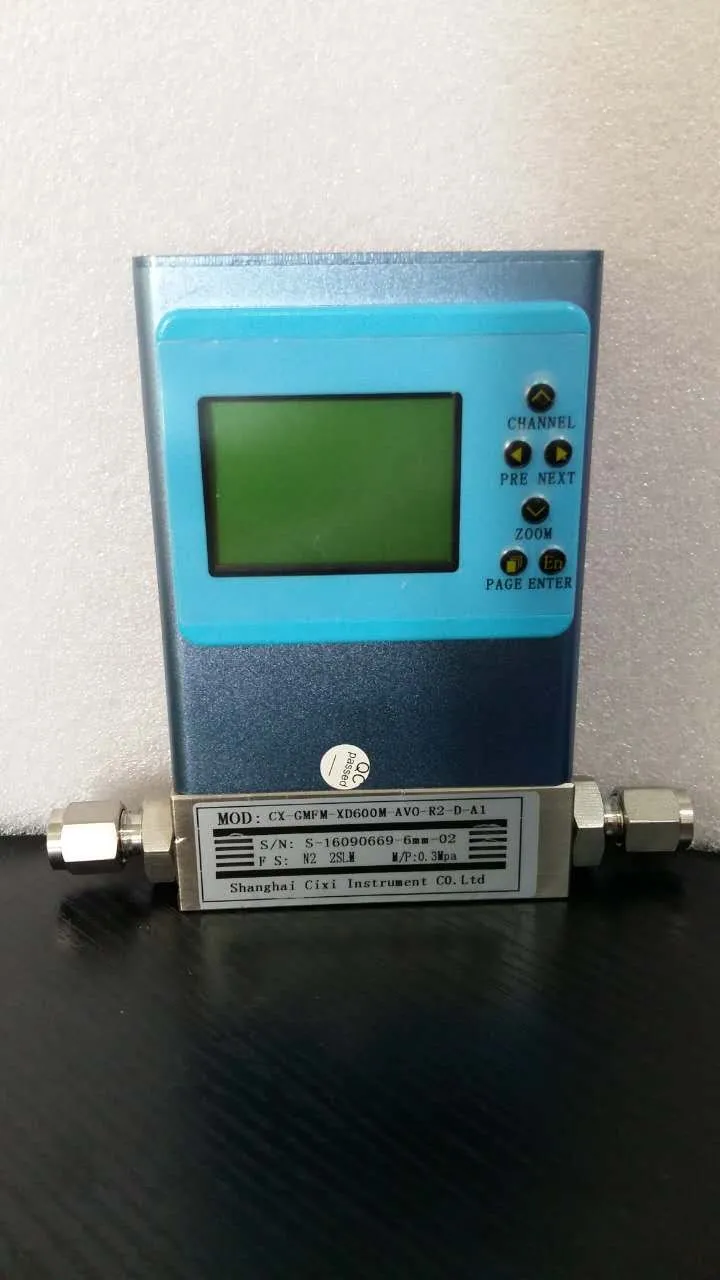

                             LCD display



         The display of gas mass flow controller could siaplay the instant flow ,total flow ,total time and control state.At the right of display there are any key to set the paraneters.

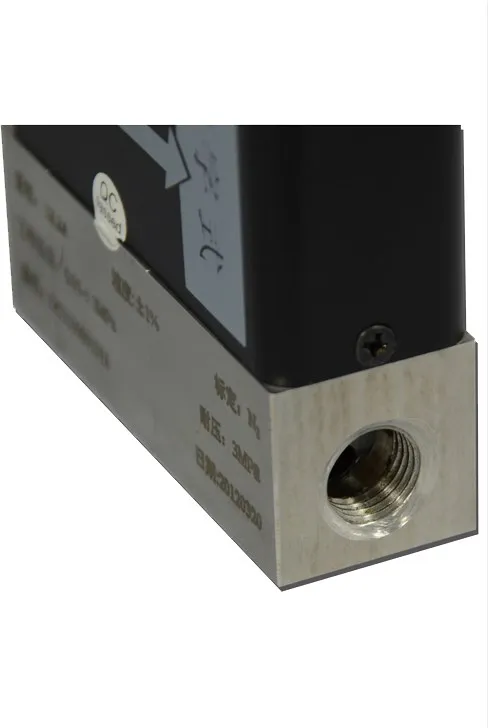

                         The connection



   The connection of gas flow meter :

        1.Swagelog: DN3/6/10, 1/4” 3/8”;

        2.VCR connector: 1/4” 3/8” 1/8”.

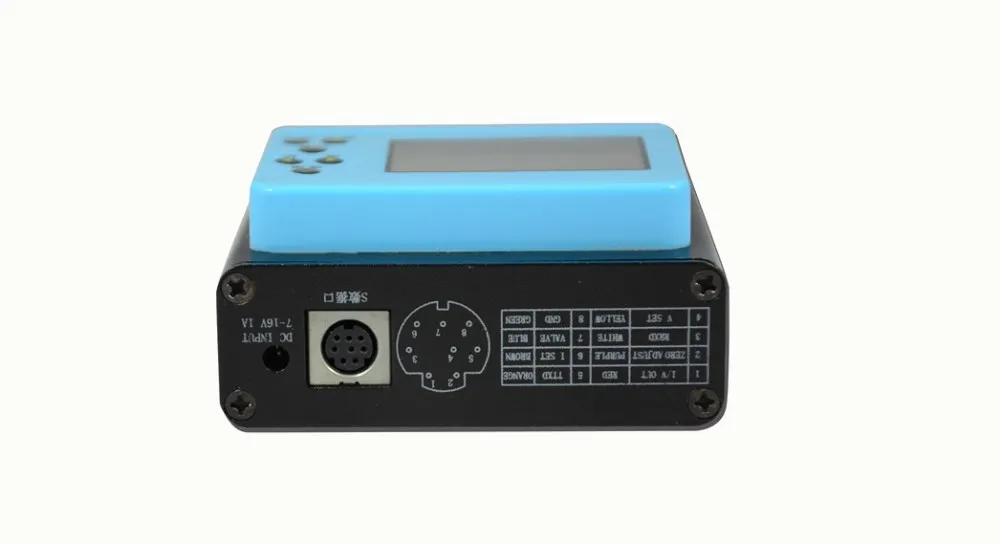

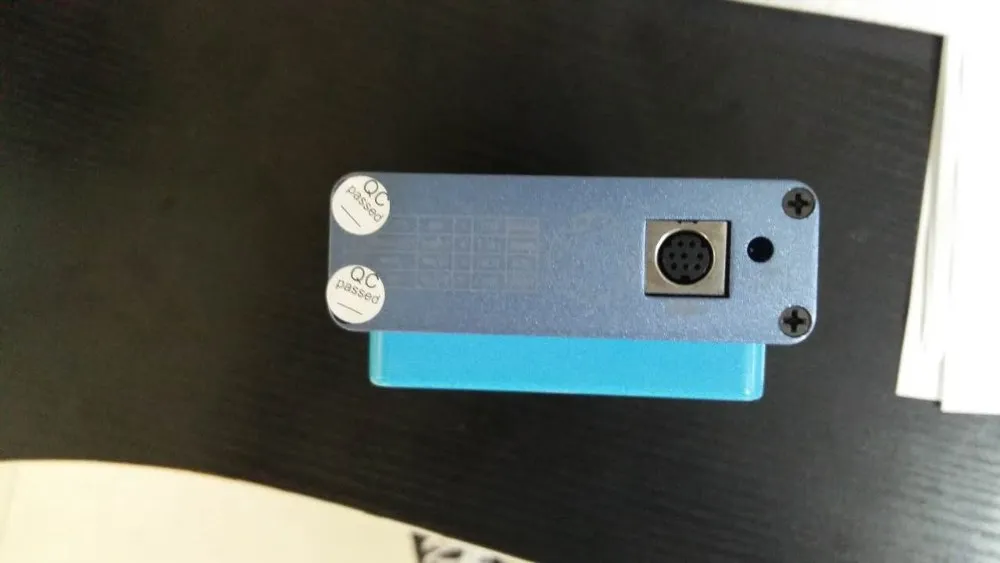

                          The Top of the MFC


    At the top of the MFC,there is a S connection.

    The S connection with 8 hole.

 1.output signal:red wire

 2. zero :Violet wire

 3.RS232 input signal :white wire

 4.Voltage setting:yellow

 5:rs232 output:organe

 6.Current setting:brown

 7.Valve control:blue

 8.GND:green




                     The large flow controller


        If your your flow range is more than genaral ,

you may be need this gas mass flow meter.the control valve at outside.

Advantage

                                                 The ShangHai CiXi Instrument Company

                                                                                                            -----------80% instruments is for exporting



                                                  The shanghai cixi instrument company
1) We are Alibaba Assessed 9 years Gold Supplier.
2) We have about 30 years experience in production.
3) Our gas mass flow controller , gas flow meter have been exported to more 100 countries and area.
4) 100% QC inspection Before Shippment.
5) ISO,CE,SGS standard and factory price.
Pls Believe our company could provide the best services for you

                                                                   The Features Of Gas Mass Flow Controller

1.Very low zero drift and temperature drift. It can measure over 60 types of gas.

2.User can set medium parameters / customize flow range / customize low pressure difference / real-time curve output.

3.User can select different color. User can collect data into EXCEL form. Controlling form: RS232 / RS485 / 0-5V / 4-20MA / different section control / different section combination / High-low level alarm.

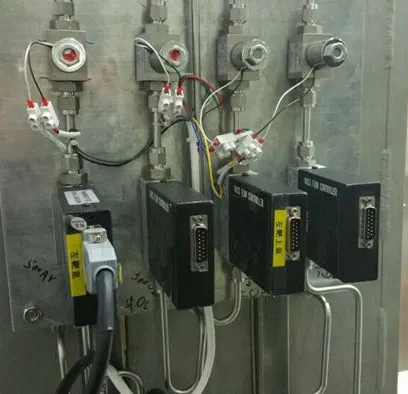

                                                        The Application Of  Gas Mass Flow Controller

   Gas Flow Meter and  gas mass Flow Controller are use to measure and control gas accurately. It’s widely used in fields of Semi-conductor / Vaccume / Solar energy / Analize instrument / photoelectricity / Gas manufactory / Medicare / Power etc.



Our Factory

    The shanghai cixi instrument company join the 2013 shenzhen Trade fair.
    and  We organized many activities usually.

    Our company received  many Foreign businessmen,they like the chinese food and products.

    We chat the local culture and the suggestions of products.
    Do you want to join us?Do you want the buy this gas mass flow controller and gas flow meter?

Package
                     Packing of gas mass flow controller
Size
L*W*H(based on the size)
Weight
About the 2KG

Package

Details

1.usually the package is carbon.
2.if you have special request pls note in the email.
