Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: GN
  • Model Number: CX-WEMFM
  • Medium: liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2
  • Range: 0.05m/s-12m/s
  • Accuracy: range between 0.1m/s-10m/s can be 0.5%
  • DN: 6mm-2000 mm
  • Output signal: 4-20mA or frequency
  • Connection: DN6-DN2000 flange connection
  • Structure: inserted style, compact type or separate type

Packaging & Delivery

Packaging Details plywood case/wooden case/carton case
Delivery Time Two weeks after receiving your payment
Product Description

CX-WEMFM Electromagnetic Flow meter / electronic water flow sensor

Product Description

what's the main brief introduction of  Electromagnetic flow meter?

1.it can measure all kinds of  electronic conductivity liquid, such as corrosive liquid , mud and slurry ,water etc.

2.The result cannot be affected by temperature, pressure, viscosity and density.

3.Flow sensor and intelligent converter compact or separately composes a complete flowmeter.

Main features

1.No move assembly, no abrasion

2.Measuring range rate: 1:100

3.No flow enhance equipment

4.Suits for various of electronic conductivity liquid

5.No affect from temperature, viscosity, pressure and density

6.Anti-corrosion and  Self diagnose

7.Measure both to and reverse flow

8.Huge display, easy operate

9.Long-term EEPROM to save data when lose power

10.Support MODBUS/HART communication protocol

11.Wide working volts range  or battery supply

12.Display chinese , english or  russian

13.It can be match with GPS

what's the technical parameters of electromagnetic flowmeter ?

Display

reaches 8 element liquid crystal display, current clock to indicate flow data. Units( m3 or L)

Structure

inserted style, compact type or separate type

medium

liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2

Range

0.05m/s~12m/s

Accuracy

range between 0.1m/s~10m/s can be 0.5%

DN

6mm~2000 mm

PN

PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional

Output signal

4~20mA or frequency

Communication

RS485,support MODBUS protocol (not standard), support HART(option)

Connection

DN6~DN2000  flange connection

Connection standard

suits for all kinds of flange standard(eg:BS EN1092-1)

Standard

accuracy apply to EN1434-1:2003 standard

Protection grade

compact type for IP65,separately type for IP67or IP68(optional)

Power

AC86~230V or DC24V(optional)

Ambient temperature

5~55C

Ambient humidity

<85 % r.h (non condensation)

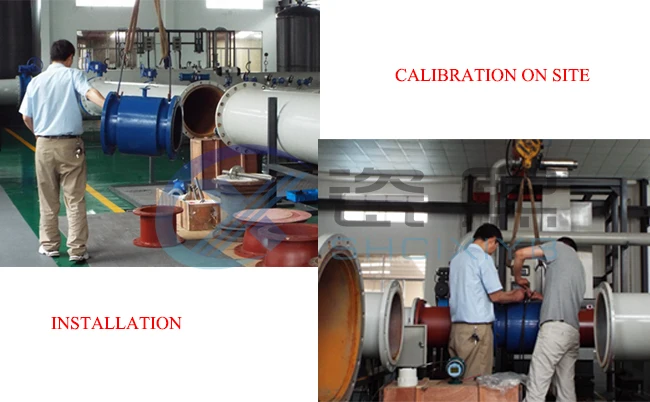

Calibration Line

Calibration Room



Installation

It has no moving part and can be used to measure the acid, alkali, salt solution, coal slurry, pulp, plaster mortar, pulp, resin, rubber latex, synthetic fiber pulp and photosensitive latex and other suspended solids, and viscous substance gasification steam flow. Electromagnetic flowmeter has been widely used in chemical industry, environmental protection, metallurgy, pharmaceutical, paper, water supply and drainage and other industrial technology and management. Electromagnetic Flowmeter sealing performance, but also for water and sewer systems. Electromagnetic flowmeter measurement process also don't contact with the fluid, suitable for pharmaceutical, biochemical and food industries. Electromagnetic flowmeter can also detect blood flow.
